Replacement for Airax Rayflex 6851255305501 550N



$41.57


Replacement gas spring for the Airax Rayflex 6851255305501 550 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512553 550N, 50006851255305501, 6851255305501.00.
    Airax Rayflex 6851255305501
    AR19

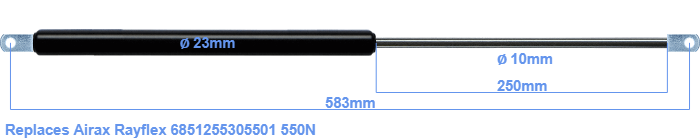

    The diameter of the cylinder of this gas spring is 23 millimeters. The rod has a diameter of 10 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this gas strut is 583 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). This gas spring (6851255305501) has a force of 550 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are almost entirely equal.
    Category:
    Replacement for Airax Rayflex 6851255305501 550N
