Replacement for Airax Rayflex 6851255301001 100N

$41.57

Replacement gas spring for the Airax Rayflex 6851255301001 100 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Quantity

Add to basket

This gas spring is also known as 512553 100N, 50006851255301001, 6851255301001.00.

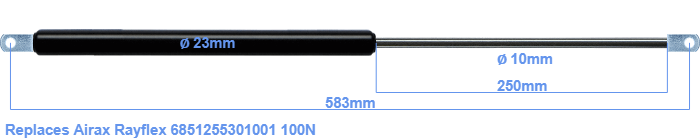

This gas spring has a cylinder diameter of 23 mm. The rod has a diameter of 10 mm. The stroke (the retracting part) has a length of 250 mm. In total, the length is 583 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). This replacement gas spring has a force of 100 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions almost entirely equal.
