Replacement for Airax Rayflex 6851255109501 950N

$38.56



Replacement gas spring for the Airax Rayflex 6851255109501 950 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851255109501 950N quantity

Add to basket

This gas spring is also known as 512551 950N, 50006851255109501, 6851255109501.00.

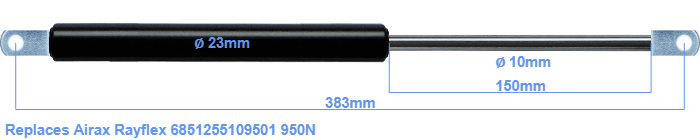

The diameter of the black cylinder of this gas spring is 23 millimeter. The cross section of the rod is 10 mm. The stroke is 150 millimeter long. The total length of this replacement is 383 millimeter. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 345 mm. This replacement gas spring has a force of 950 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
