Replacement for Airax Rayflex 6851255105501 550N

$38.56



Replacement gas spring for the Airax Rayflex 6851255105501 550 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851255105501 550N quantity

Add to basket

This gas spring is also known as 512551 550N, 50006851255105501, 6851255105501.00.

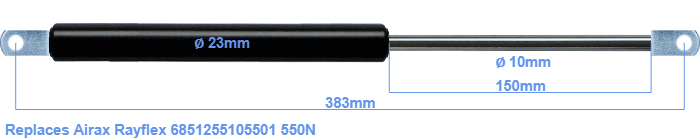

The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod is 10 millimeter. The stroke is 150 millimeter long. In total, the length is 383 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 345 mm long (thread to thread). This replacement gas spring has a force of 550 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. The force (550 N) and dimensions are almost identical to the original.
