Replacement for Airax Rayflex 6851255103501 350N

$38.56



Replacement gas spring for the Airax Rayflex 6851255103501 350 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851255103501 350N quantity

Add to basket

This gas spring is also known as 512551 350N, 50006851255103501, 6851255103501.00.

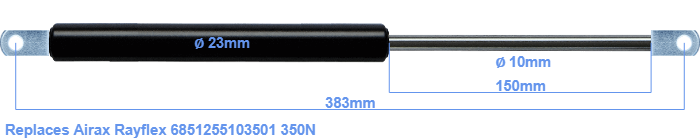

The diameter of the cylinder of this gas spring is 23 millimeters. The rod has a diameter of 10 mm. The chrome part is called the rod. It has a length of 150 mm. The total length of this replacement is exactly 383 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 345 mm. The force of this replacement gas spring is 350 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
