Replacement for Airax Rayflex 6851255102501 250N

$38.56



Replacement gas spring for the Airax Rayflex 6851255102501 250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851255102501 250N quantity

Add to basket

This gas spring is also known as 512551 250N, 50006851255102501, 6851255102501.00.

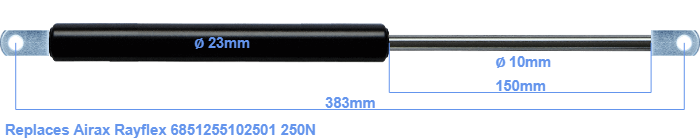

This gas spring has a cylinder diameter of 23 mm. The rod has a diameter of 10 mm. The stroke of the gas spring is 150 millimeter. The total length of this gas strut is 383 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 345 millimeter. This gas spring (6851255102501) has a force of 250 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
