Replacement for Airax Rayflex 6851254810001 1000N

$53.04



Out of Stock until approximately 11/29/2024,

Replacement gas spring for the Airax Rayflex 6851254810001 1000 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851254810001 1000N quantity

Add to basket

This gas spring is also known as 512548 1000N, 50006851254810001, 6851254810001.00.

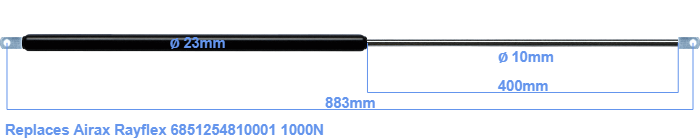

The diameter of the cylinder of this gas spring is 23 millimeters. The cross section of the rod is 10 mm. The chrome part is called the rod. It has a length of 400 mm. In total, the length is 883 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 845 mm long (thread to thread). The force of this replacement gas spring is 1000 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
