Replacement for Airax Rayflex 6851254807501 750N

$53.04



Out of Stock until approximately 11/29/2024,

Replacement gas spring for the Airax Rayflex 6851254807501 750 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851254807501 750N quantity

Add to basket

This gas spring is also known as 512548 750N, 50006851254807501, 6851254807501.00.

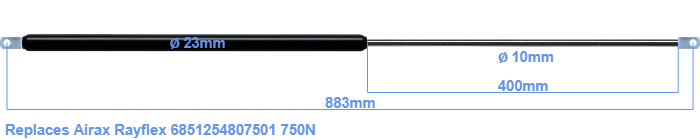

This gas spring has a cylinder diameter of 23 mm. The cross section of the rod is 10 mm. The rod (the chrome part) is 400 mm long. The total length of this replacement is exactly 883 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 845 mm. This replacement gas spring (6851254807501) has a force of 750 Newton (N). This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
