Replacement for Airax Rayflex 6851254807001 700N

$53.04



Out of Stock until approximately 11/29/2024,

Replacement gas spring for the Airax Rayflex 6851254807001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851254807001 700N quantity

Add to basket

This gas spring is also known as 512548 700N, 50006851254807001, 6851254807001.00.

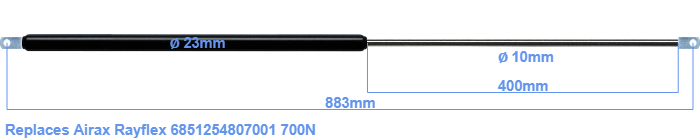

The diameter of the cylinder of this gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke of the gas spring is 400 millimeter. In total, the length is 883 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 845 mm. The force of this replacement is 700 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This a gas spring with the brand HAHN. Nevertheless, the dimensions and force are almost entirely equal.
