Replacement for Airax Rayflex 6851254409501 950N

$43.06



Replacement gas spring for the Airax Rayflex 6851254409501 950 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851254409501 950N quantity

Add to basket

This gas spring is also known as 512544 950N, 50006851254409501, 6851254409501.00.

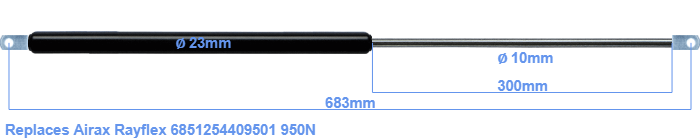

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod is 10 millimeter. The chrome part is called the rod. It has a length of 300 mm. The total length of this replacement is exactly 683 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 645 millimeter. The force of this replacement is 950 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
