$43.06
Replacement gas spring for the Airax Rayflex 6851254409001 900 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
View this gas spring in our configurator. This gas spring is also known as 512544 900N, 50006851254409001, 6851254409001.00.

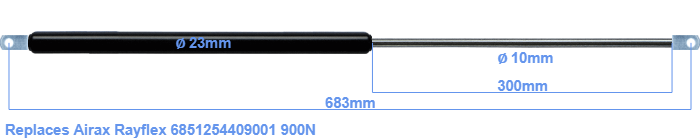

The diameter of the black cylinder of this gas spring is 23 millimeter. The rod has a diameter of 10 mm. The stroke (the retracting part) has a length of 300 mm. In total, the length is 683 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement gas spring is 900 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
