$43.06




Replacement gas spring for the Airax Rayflex 6851254408001 800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512544 800N, 50006851254408001, 6851254408001.00.
    Airax Rayflex 6851254408001
    AR19

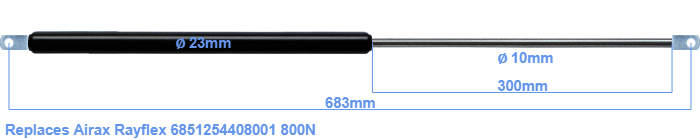

    This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 300 mm. In total, the length is 683 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring has a force of 800 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
    Category:
    Replacement for Airax Rayflex 6851254408001 800N
