Replacement for Airax Rayflex 6851252601001 100N

$53.04



Out of Stock until approximately 11/29/2024,

Replacement gas spring for the Airax Rayflex 6851252601001 100 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252601001 100N quantity

Add to basket

This gas spring is also known as 512526 100N, 50006851252601001, 6851252601001.00.

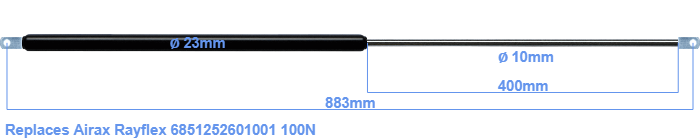

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke is 400 millimeter long. The total length of this replacement is exactly 883 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 845 mm long (thread to thread). This replacement gas spring has a force of 100 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions almost entirely equal.
