Replacement for Airax Rayflex 6851252511501 1150N

$48.80



Out of Stock until approximately 12/27/2024,

Replacement gas spring for the Airax Rayflex 6851252511501 1150 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252511501 1150N quantity

Add to basket

This gas spring is also known as 512525 1150N, 50006851252511501, 6851252511501.00.

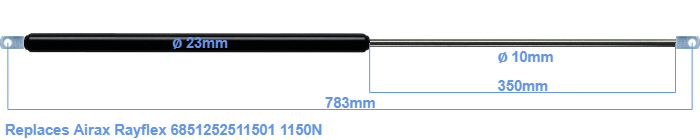

The diameter of the cylinder of this gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke (the retracting part) has a length of 350 mm. The total length of this replacement is 783 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 745 millimeter. This replacement gas spring has a force of 1150 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
