Replacement for Airax Rayflex 6851252510501 1050N

$48.80



Out of Stock until approximately 12/27/2024,

Replacement gas spring for the Airax Rayflex 6851252510501 1050 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252510501 1050N quantity

Add to basket

This gas spring is also known as 512525 1050N, 50006851252510501, 6851252510501.00.

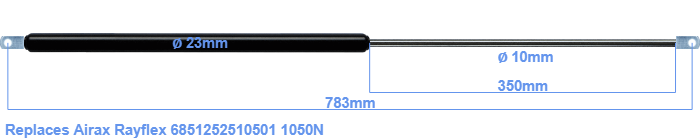

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The stroke of the gas spring is 350 millimeter. The total length of this gas strut is 783 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 745 mm. The force of this replacement is 1050 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are close to equal.
