Replacement for Airax Rayflex 6851252410501 1050N

$43.06



Replacement gas spring for the Airax Rayflex 6851252410501 1050 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252410501 1050N quantity

Add to basket

This gas spring is also known as 512524 1050N, 50006851252410501, 6851252410501.00.

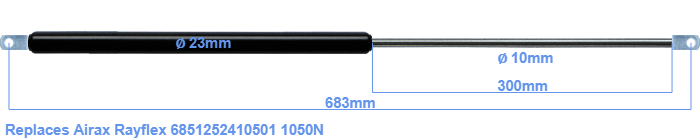

The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod is 10 millimeter. The rod (the chrome part) is 300 mm long. The total length of this replacement gas spring is 683 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement is 1050 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
