$43.06




Replacement gas spring for the Airax Rayflex 6851252407001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512524 700N, 50006851252407001, 6851252407001.00.
    Airax Rayflex 6851252407001
    AR19

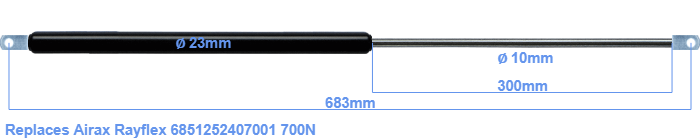

    The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke (the retracting part) has a length of 300 mm. The total length of this replacement is exactly 683 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring has a force of 700 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This replacement gas spring is a HAHN gas spring. Nevertheless, the force and dimensions almost equal.
    Category:
    Replacement for Airax Rayflex 6851252407001 700N
