Replacement for Airax Rayflex 6851252406501 650N

$43.06



Replacement gas spring for the Airax Rayflex 6851252406501 650 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252406501 650N quantity

Add to basket

This gas spring is also known as 512524 650N, 50006851252406501, 6851252406501.00.

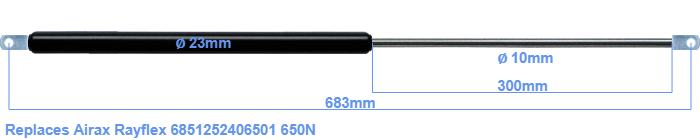

The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke is 300 millimeter long. The total length of this gas strut is 683 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 645 millimeter. The force of this replacement gas spring is 650 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
