Replacement for Airax Rayflex 6851252404501 450N

$43.06



Replacement gas spring for the Airax Rayflex 6851252404501 450 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252404501 450N quantity

Add to basket

This gas spring is also known as 512524 450N, 50006851252404501, 6851252404501.00.

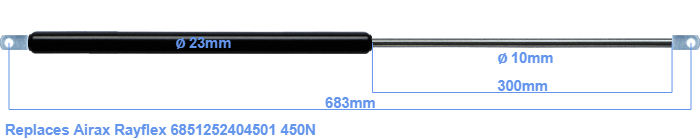

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod is 10 millimeter. The chrome part is called the rod. It has a length of 300 mm. The total length of this gas strut is 683 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. This gas spring (6851252404501) has a force of 450 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
