Replacement for Airax Rayflex 6851252404001 400N

$43.06



Replacement gas spring for the Airax Rayflex 6851252404001 400 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252404001 400N quantity

Add to basket

This gas spring is also known as 512524 400N, 50006851252404001, 6851252404001.00.

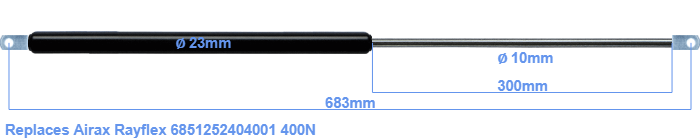

The diameter of the cylinder of this gas spring is 23 millimeters. The rod has a diameter of 10 mm. The chrome part is called the rod. It has a length of 300 mm. The total length of this gas strut is 683 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 645 mm. This replacement gas spring (6851252404001) has a force of 400 Newton (N). This is not an official Airax Rayflex gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost equal.
