Replacement for Airax Rayflex 6851252403501 350N

$43.06



Replacement gas spring for the Airax Rayflex 6851252403501 350 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252403501 350N quantity

Add to basket

This gas spring is also known as 512524 350N, 50006851252403501, 6851252403501.00.

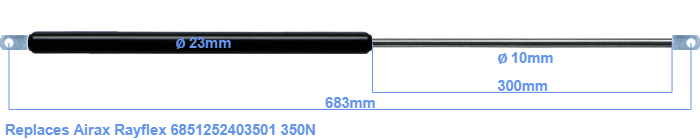

The bore of the house of this replacement gas spring is 23 mm. The cross section of the rod is 10 mm. The chrome part is called the rod. It has a length of 300 mm. The total length of this replacement is exactly 683 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement is 350 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This is a HAHN gas spring. The force (350 N) and dimensions are almost entirely identical to the original.
