Replacement for Airax Rayflex 6851252309501 950N

$41.57



Replacement gas spring for the Airax Rayflex 6851252309501 950 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252309501 950N quantity

Add to basket

This gas spring is also known as 512523 950N, 50006851252309501, 6851252309501.00.

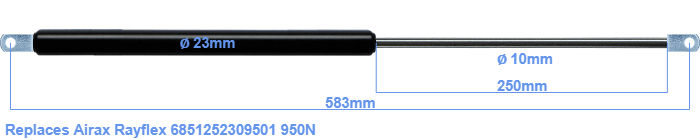

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The chrome part is called the rod. It has a length of 250 mm. In total, the length is 583 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement is 950 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (950 N) and dimensions are close to identical to the original.
