Replacement for Airax Rayflex 6851252308001 800N

$41.57



Replacement gas spring for the Airax Rayflex 6851252308001 800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252308001 800N quantity

Add to basket

This gas spring is also known as 512523 800N, 50006851252308001, 6851252308001.00.

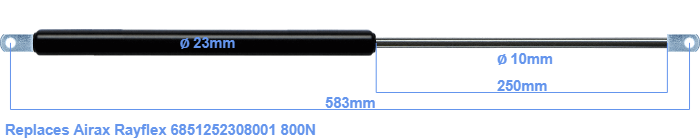

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 250 mm. In total, the length is 583 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. This replacement gas spring (6851252308001) has a force of 800 Newton (N). This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
