Replacement for Airax Rayflex 6851252307001 700N

$41.57



Replacement gas spring for the Airax Rayflex 6851252307001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252307001 700N quantity

Add to basket

This gas spring is also known as 512523 700N, 50006851252307001, 6851252307001.00.

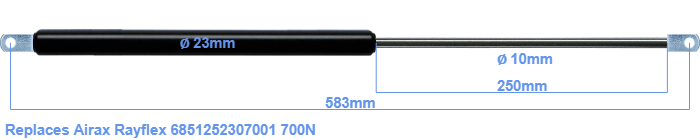

The diameter of the black cylinder of this gas spring is 23 millimeter. The rod has a diameter of 10 mm. The rod (the chrome part) is 250 mm long. The total length of this gas strut is 583 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. This replacement gas spring has a force of 700 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This is a HAHN gas spring. The force (700 N) and dimensions are almost identical to the original.
