Replacement for Airax Rayflex 6851252303001 300N

$41.57



Replacement gas spring for the Airax Rayflex 6851252303001 300 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252303001 300N quantity

Add to basket

This gas spring is also known as 512523 300N, 50006851252303001, 6851252303001.00.

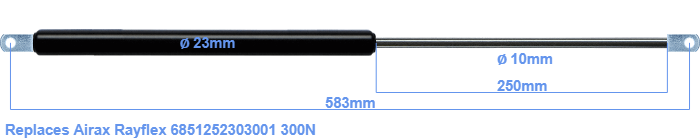

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke is 250 millimeter long. The total length of this gas strut is 583 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. The force of this replacement gas spring is 300 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
