Replacement for Airax Rayflex 6851252205001 500N

$40.07



Replacement gas spring for the Airax Rayflex 6851252205001 500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252205001 500N quantity

Add to basket

This gas spring is also known as 512522 500N, 50006851252205001, 6851252205001.00.

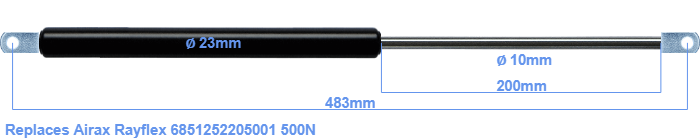

The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 200 mm. The total length of this replacement is 483 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). This gas spring (6851252205001) has a force of 500 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This replacement gas spring is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
