Replacement for Airax Rayflex 6851252112001 1200N

$38.56



Replacement gas spring for the Airax Rayflex 6851252112001 1200 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252112001 1200N quantity

Add to basket

This gas spring is also known as 512521 1200N, 50006851252112001, 6851252112001.00.

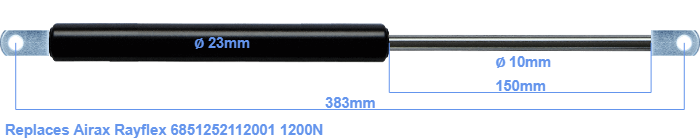

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement gas spring is 383 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 345 mm. This replacement gas spring (6851252112001) has a force of 1200 Newton (N). This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, the force and dimensions nearly equal.
