Replacement for Airax Rayflex 6851252110501 1050N

$38.56



Replacement gas spring for the Airax Rayflex 6851252110501 1050 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252110501 1050N quantity

Add to basket

This gas spring is also known as 512521 1050N, 50006851252110501, 6851252110501.00.

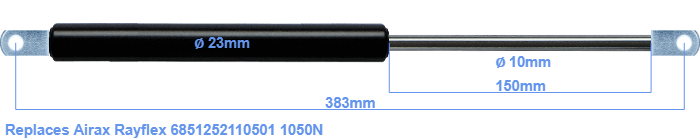

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The rod (the chrome part) is 150 mm long. The total length of this gas strut is 383 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 345 mm. This gas spring (6851252110501) has a force of 1050 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
